Universal Fastener Gaging Systems
Complete Catalog of Precision Inspection Platforms
Explore Universal Punch Corp’s full portfolio of engineered gaging systems for thread measurement, recess validation, concentricity inspection, dimensional verification, and functional strength testing. Each platform is designed for repeatability, durability, and real-world manufacturing environments.
Thread Gaging Systems
Engineered platforms for precision pitch diameter and functional thread validation across internal and external thread forms.
External Thread Systems:
- 12000 External 3-Point™ Thread Gage System
- 18000 Digital External Thread Gage System
Internal Thread Systems:

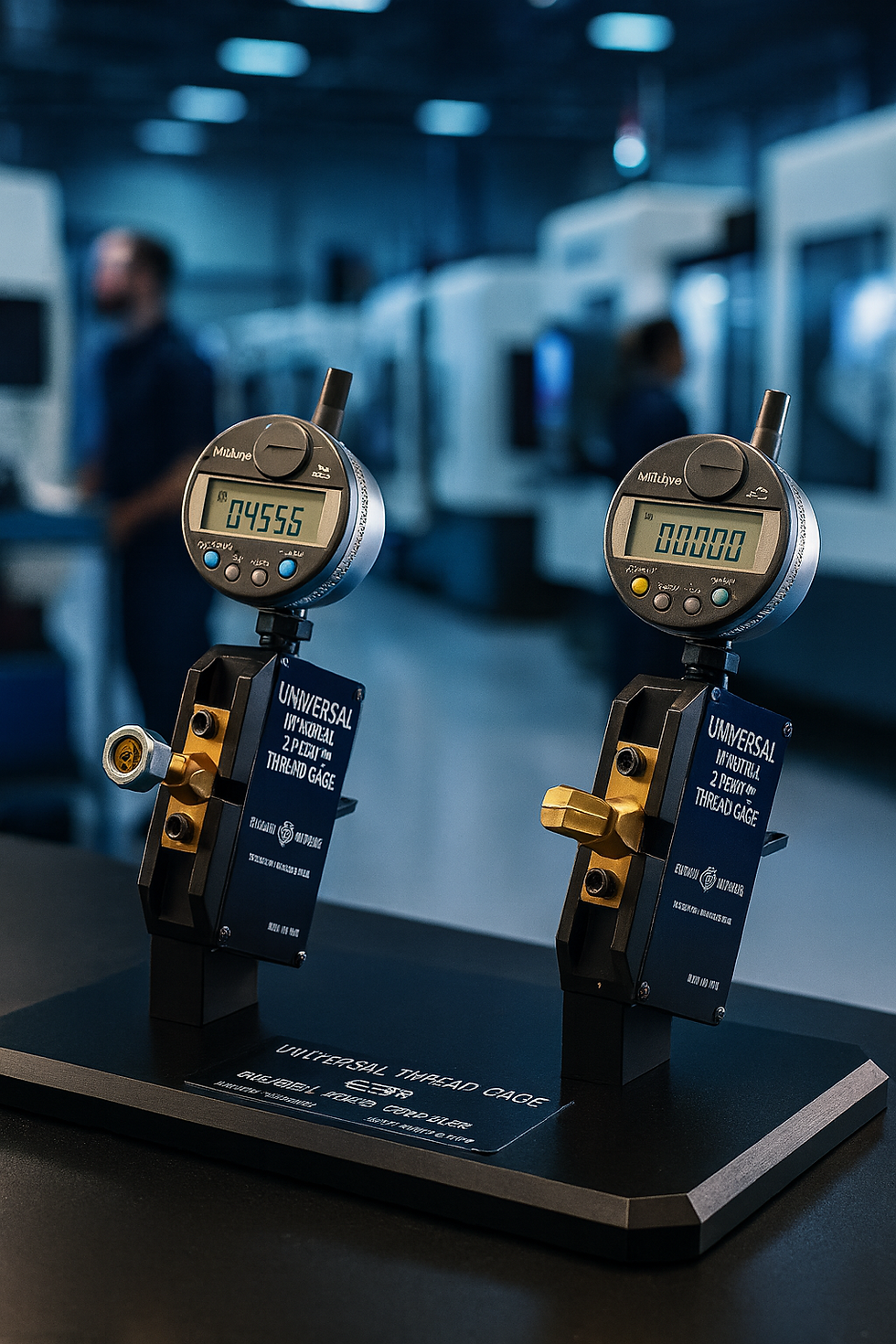

- 20000 Internal 2-Point™ Thread Gage System
- 2000 Digital Internal Thread Gage System
Specialty Thread Systems:
- 9700 TRI-LOBE TAPTITE® “C” Dimension Gage System
Recess & Drive Gaging
Comprehensive penetration, GO / NO-GO, fallaway, final inspection, and compatibility gages for fastener drive validation.
6-Lobe (TX) Series:
- 1180–1185 Series
- 2185–2197 Series
- 1182 Fallaway Gage
Hexagon & Metric Hex:
- 9025 | 9040 | 9052
- 9053 | 9055
- 9075 | 9076
Square / Robertson:
- 9089 | 9090
- 9091 | 9092
Quadrex:
- 9095 | 9096
6-Lobe EXTRA (TXP):
- 1280–1295 Series
- 2285–2298 Series
Spline & Metric Spline:
- 9030 | 9035
- 9060 | 9065
Cruciform / Tri-Slot:
- 9043 | 9044 | 9045
- 9046 | 9047 | 9048
Modular & Compatibility:
- 9100 Penetration Gaging
- 9200 Wobble Gage
Concentricity & Runout Systems
Precision alignment and runout inspection platforms for shafts, fasteners, and rotary components in production and laboratory environments.
Models Represented:
- Model A-10
- Model B-10
- Model B-20
- Model B-40
- Model E-10
- Model F-10
- Model G1-10
- Model G2-10
- Model H-10
- Model HL-10
- Model J-10
- Model K
Digital Runout:
- 9500 Digital Runout & Recess Concentricity Checker
Functional Testing
Mechanical performance verification systems engineered for torsional strength and structural integrity validation.
- 9300 Torsional Strength Testing Fixture – ASME
- 9400 NAS Torsional Strength Testing Fixture – MIL-S-87114A
Specialty & Support
Specialized inspection and support solutions that extend the performance and usability of gaging programs.
- 9600 Drill Point Web Thickness Gage System
- 8900 Gage Storage Boxes
