Thread Runout & Functional Alignment Inspection System

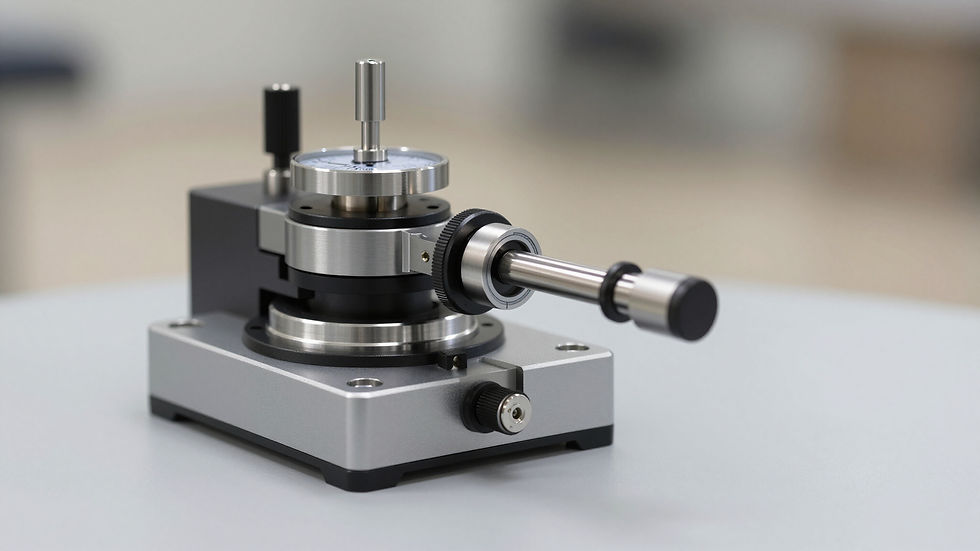

Universal Punch Concentricity Gage System

The Universal Punch Concentricity Gage System provides a fast, accurate, and repeatable method for measuring thread runout and concentricity between pitch diameter and fastener body geometry.

This system verifies alignment between thread features and body diameter to ensure proper load distribution and engagement during installation.

Designed for use directly in production environments, this system supports digital indicators for SPC data output and real-time process monitoring.

FOR THREAD CONCENTRICITY & RUNOUT MEASUREMENT
(ANSI/ASME, DIN, JIS & ISO STANDARDS)

Engineered for At-Machine Runout Inspection

Universal Punch concentricity gaging systems are engineered for use directly in production environments to verify alignment between thread geometry and fastener body features.

Thread Concentricity

Runout Detection

SPC Compatible Digital Output

Pitch Diameter Alignment

Body-to-Thread Alignment

N.I.S.T. Traceable Masters

Inspection Capabilities

Thread Runout

Pitch Diameter Alignment

Concentricity

Thread Engagement Stability

Body-to-Thread Alignment

Functional Thread Geometry

Typical Applications

Aerospace Fastener Manufacturing

Medical Threaded Components

Structural Fastener Inspection

Load Distribution Verification

Production Floor Monitoring

Incoming QC Inspection

SPC Process Control

Accessories & Components

Main Roller Assemblies

Precision Indicator Mount

Digital Indicator w/SPC Output

SPC Connecting Cable

Digital Miniprocessor Recorder

Quality & Certification Compatibility

Universal Punch concentricity gaging systems are designed to support aerospace, medical, and automotive quality assurance environments.

All measurement equipment and gaging masters are directly traceable to N.I.S.T. and may be supplied with certification documentation.

Calibration procedures conform to ISO/IEC 17025 where applicable.
