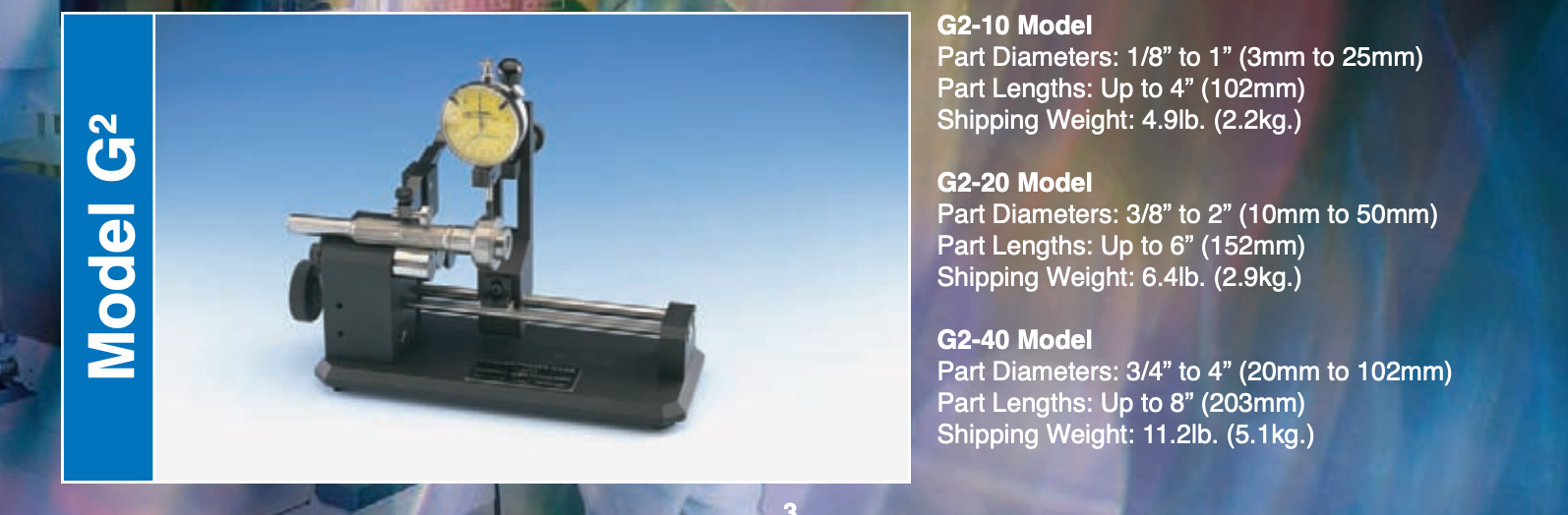

The Model G2-10 Concentricity Gaging System is an enhanced stability inspection platform engineered for accurate measurement of concentricity, runout, and total indicator reading (TIR) on small diameter cylindrical components.

Designed with reinforced support and precise rotational control, the G2-10 accommodates parts from 1/8 inch to 1 inch in diameter and up to 4 inches in length.

Its dual-support configuration improves part stability during rotation, delivering consistent and repeatable inspection results in both laboratory and production environments.

The Model G2-10 is ideal for manufacturers requiring improved stability and precision for demanding inspection applications.

KEY BENEFITS

• Diameter capacity from 1/8 inch to 1 inch

• Length capacity up to 4 inches

• Enhanced part stability during rotation

• Less than 2 micron accuracy under proper setup conditions

• Smooth, controlled manual rotation

• Modular inspection platform

TECHNICAL SPECIFICATIONS

Model: G2-10

Part Diameter Range:

1/8 inch to 1 inch (3 mm to 25 mm)

Maximum Part Length:

Up to 4 inches (102 mm)

Shipping Weight:

Approximately 5 lb (2.3 kg)

Drive System:

Manual drive standard

Motorized drive optional

System Accuracy:

Less than 2 microns under controlled conditions

STANDARD FEATURES

• Dual-support roller configuration for enhanced stability

• Adjustable multi-position top arm yoke assembly

• Controlled clamping pressure for varying diameters

• Fine adjustment indicator carrier for precise probe positioning and zeroing

• Smooth manual drive timing belt system

• Z-axis adjustable carrier positioning

• 90 degree tilting carrier for easy loading and unloading

• Precision roller support system

• Compact bench-top footprint
